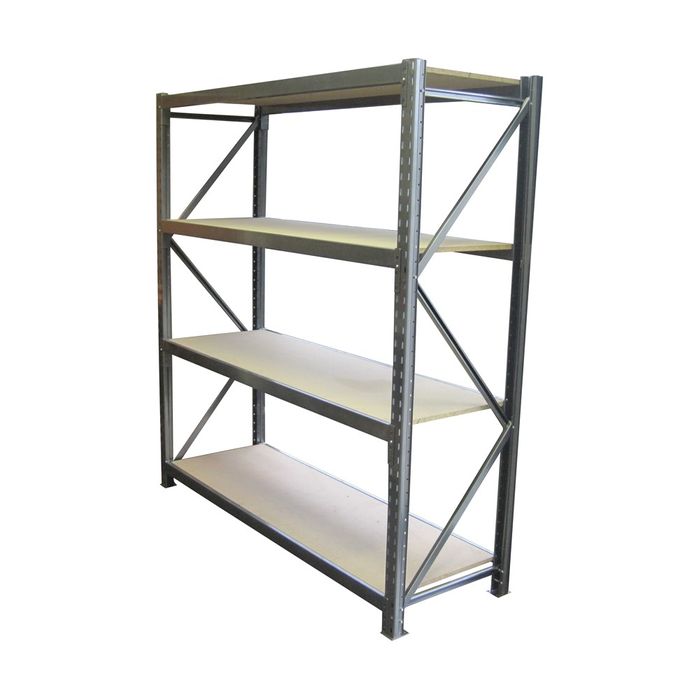

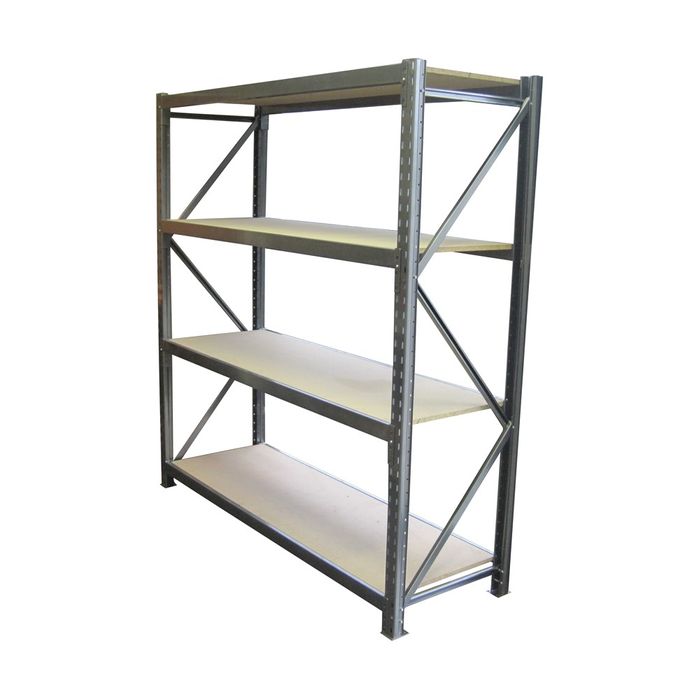

Longspan Shelving H2000xD600mm - different Length available
Longspan Shelving: The boltless assembly makes them easy to put together by standing up the frame, putting the beams into position, and locking the pins in place.

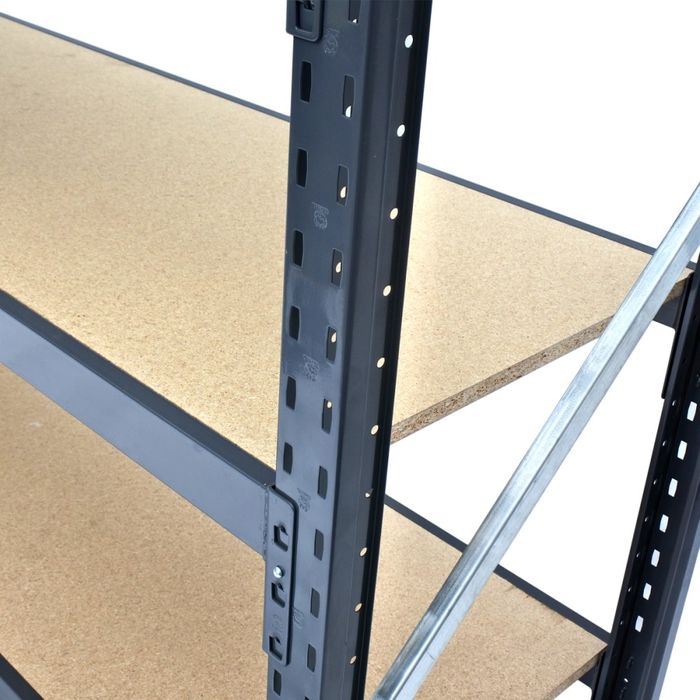

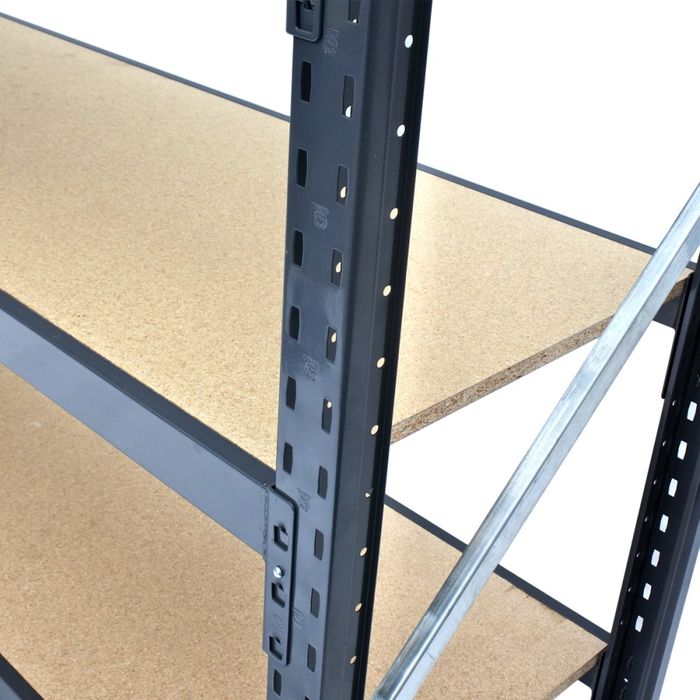

The longspan shelves are easy to move vertically as the posts are punched with a 50mm pitch allowing for a shelf level to be moved if required.
This longspan shelving although durable is designed for small to medium-sized items.
Shelf Loading [UDL] = 450kg per level
Overall Size: L1620*H2000*D600mm
Components to make 1 bay of long span shelving with 4 raised levels
Add 60mm per post to the bay length for overall measurement
2 of Assembled End Frames H2000*D600mm
8 of Beams L1500mm
4 of 18mm Raw Chipboard Shelves
16 of Beam safety locking pins
unassembled
Finish:
Posts Powdercoat: Dark Grey
Bracing, Feet & Hardware: Zinc finish
Shelf Material: 18mm Raw Chipboard
Longspan Shelving: The boltless assembly makes them easy to put together by standing up the frame, putting the beams into position, and locking the pins in place.
The longspan shelves are easy to move vertically as the posts are punched with a 50mm pitch allowing for a shelf level to be moved if required.
This longspan shelving although durable is designed for small to medium-sized items.
Shelf Loading [UDL] = 450kg per level
Overall Size: L1920*H2000*D600mm
Components to make up 1 bay of long span shelving with 4 raised levels
Add 60mm per post to the bay length for overall measurement
2 of Assembled End Frames H2000*D600mm
8 of Beams L1800mm
4 of 18mm Raw Chipboard Shelves
16 of Beam safety locking pins
unassembled
Finishes:
Posts in an Dark Grey Powdercoat
Bracing, Feet & Hardware are in a Zinc finish
Shelf Material: 18mm Raw Chipboard
Longspan Shelving: The boltless assembly makes them easy to put together by standing up the frame, putting the beams into position, and locking the pins in place.
The longspan shelves are easy to move vertically as the posts are punched with a 50mm pitch allowing for a shelf level to be moved if required.
This longspan shelving although durable is designed for small to medium-sized items.
Shelf Loading [UDL] = 450kg per level
Overall Size: L2520 x H2000 x D600mm
Components to make up 1 bay of long span shelving with 4 raised levels
Add 60mm per post to the bay length for overall measurement
2 of Assembled End Frames H2000*D600mm
8 of Beams L2400mm
4 of 18mm Raw Chipboard Shelves
16 of Beam safety locking pins
unassembles
Finishes:
Posts in an Dark Grey Powdercoat
Bracing, Feet & Hardware are in a Zinc finish
Shelf Material: 18mm Raw Chipboard

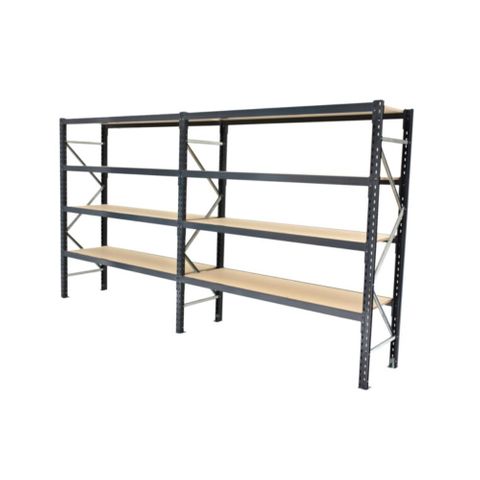

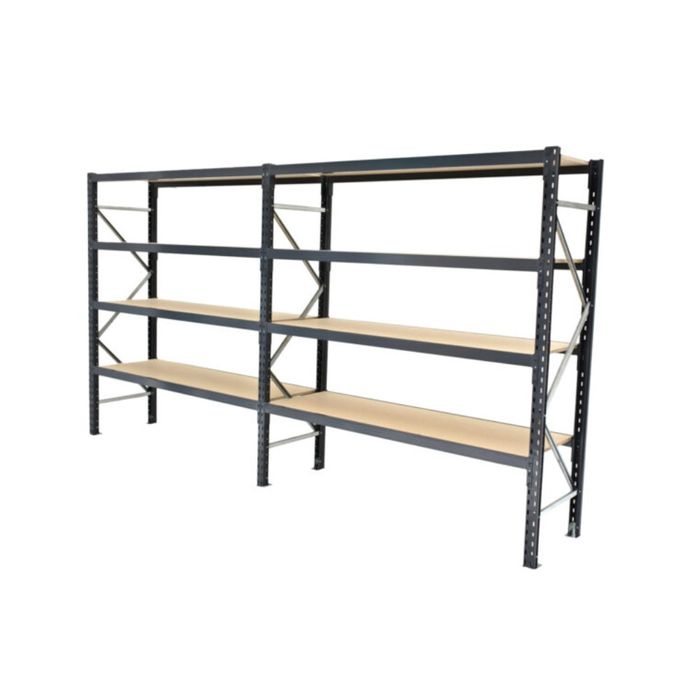

Longspan Shelving: The boltless assembly makes them easy to put together by standing up the frame, putting the beams into position, and locking the pins in place.
The longspan shelves are easy to move vertically as the posts are punched with a 50mm pitch allowing for a shelf level to be moved if required.
This longspan shelving although durable is designed for small to medium-sized items.
Shelf Loading [UDL] = 450kg per level
Overall Size: L2895*H2000*D600mm
Components to make up 2 bays joined of long span shelving with 4 raised levels per bay
Add 60mm per post to the bay length for overall measurement
3 of Assembled End Frames H2000*D600mm
8 of Beams L1200mm
8 of Beams L1500mm
4 of 18mm Raw Chipboard Shelves L1186 x D558mm
4 of 18mm Raw Chipboard Shelves L1486 x D558mm
32 of Beam safety locking pins
***unassembled
Finishes:
Posts in an Dark Grey Powdercoat
Bracing, Feet & Hardware are in a Zinc finish
Shelf Material: 18mm Raw Chipboard
