Compak Max Office - Compactus

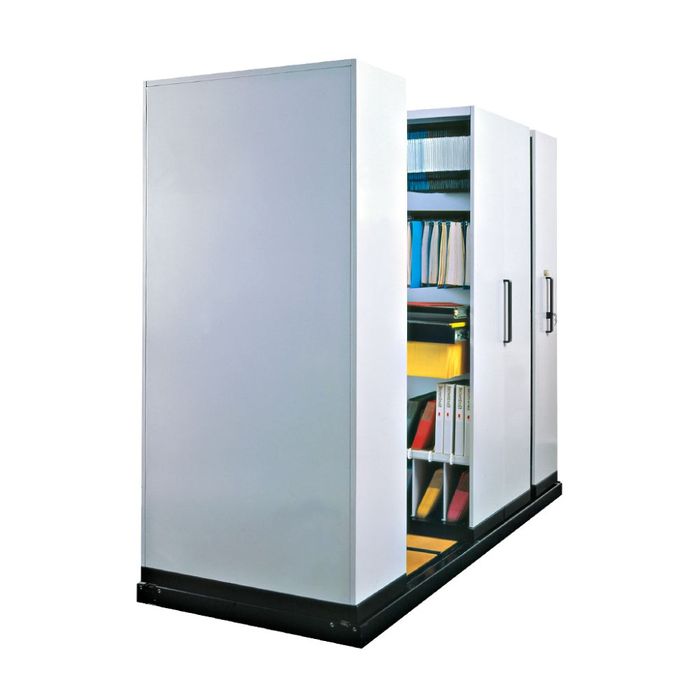

Brownbuilt CompakMax Office is the smart hand-operated compacting storage system specifically designed for office deployment.
Get the most out of your precious floor space while improving inventory and file access through better organisation.
This unit allows for reduced floor space compared with the equivalent filing in filing cabinets.
Easy, Universal Installation.
Welded pre-fabricated steel base modules mean that there’s no need for floor preparation, and adjustable feet compensate for uneven floors.
Welded steel channels form a self-contained track supporting the cabinets and mobiles.
Lateral guide channels, which accommodate mobile lateral guide wheels, act as anti-tilt mechanisms for the storage cabinets.
Welded steel box sections are supported by crowned load wheels fitted with ball bearings for ease of movement and horizontal lateral guide wheels prevent cabinets from tipping.
Standard single-point, internal, key-activated locking mechanism fixing into the platform base,
BOC-C configuration:
1 single mobile D325, 1 double D325 mobile, 1 fixed D425mm, 1 static D425mm unit.
Base Length: 2560mm
Base Widths:950mm,
Carcase Heights:1850mm,
Overall Heights: 2020mm
Aisle Width: 735mm
Shelf Widths:900mm
Shelf Depths:300mm Mobiles
400mm End Units
Storage Capacity:
950mm: 27.0 Lineal Metres
Finish: Silver Grey
Note: Your floor must be capable of load capacity. Engineer's assessment is recommended.
Options POA:
Larger BOC-C:
Overall Height 2170mm with carcass height 2000mm
Overall Base Width: 1245 with Carcass width 1200mm
Overall Base Length remains 2560mm
Storage Capacity 36 lineal metres
Brownbuilt CompakMax Office is the smart hand-operated compacting storage system specifically designed for office deployment.
Get the most out of your precious floor space while improving inventory and file access through better organisation.
This unit allows for reduced floor space compared with the equivalent filing in filing cabinets.
Easy, Universal Installation.
Welded pre-fabricated steel base modules mean that there’s no need for floor preparation, and adjustable feet compensate for uneven floors.
Welded steel channels form a self-contained track supporting the cabinets and mobiles.
Lateral guide channels, which accommodate mobile lateral guide wheels, act as anti-tilt mechanisms for the storage cabinets.
Welded steel box sections are supported by crowned load wheels fitted with ball bearings for ease of movement and horizontal lateral guide wheels prevent cabinets from tipping.
Standard single-point, internal, key-activated locking mechanism fixing into the platform base,
BOC-C configuration:
1 single mobile D325, 1 double D325 mobile, 1 fixed D425mm, 1 static D425mm unit.
Base Length: 2560mm
Base Widths:1245mm,
Carcase Heights:1850mm,
Overall Heights: 2020mm
Aisle Width: 735mm
Shelf Widths:1200mm
Shelf Depths:300mm Mobiles, 400mm End Units
Storage Capacity:
950mm: 27.0 Lineal Metres
Finish: Silver Grey
Note: Your floor must be capable of load capacity. Engineer's assessment is recommended.
Options POA:
Overall Height 2170mm with carcass height 2000mm
Overall Base Width: 950 with Carcass width 900mm
Overall Base Length remains 2560mm
Storage Capacity 36 lineal metres
