Screen Brackets Suit Panels 6 - 24mm - Hush
Hush Screen Brackets are spare brackets for screens that are sold without brackets or as replacement/additional bracket
They are made from light and sturdy aluminium,
Choose between three different mounting options:Top Mount, Side Mount or Divided Mount.
Side and Divided mount base section is designed to suit 25mm thick tops, however with packing they can be adapted to 18mm thick tops.
Most screens require at least 2 of these to support them,
Note other length bolts not supplied, can adapt this bracket to differing thickness screens.
The surface mount brackets are compatible with privacy screens of thickness between 6 - 24mm.
Install in 3 easy steps:
Slide the brackets over the edge of the desktop
Tighten the 3 screws (for each bracket) from underneath
Insert the privacy screen in the brackets and tighten the bolts.
Colour: Black, Silver or White
Please specify screen thickness to determine overall length of Cap Bolt
(Bolt: Hex head 8mm diam x 5mm deep head M6 thread)
3-5mm panels /15mm bolt
6mm or 9mm panels /20mm bolt
8mm and 12mm panels/ 25mm bolt
18mm panels /30mm bolt
24mm panels/ 35mm bolt

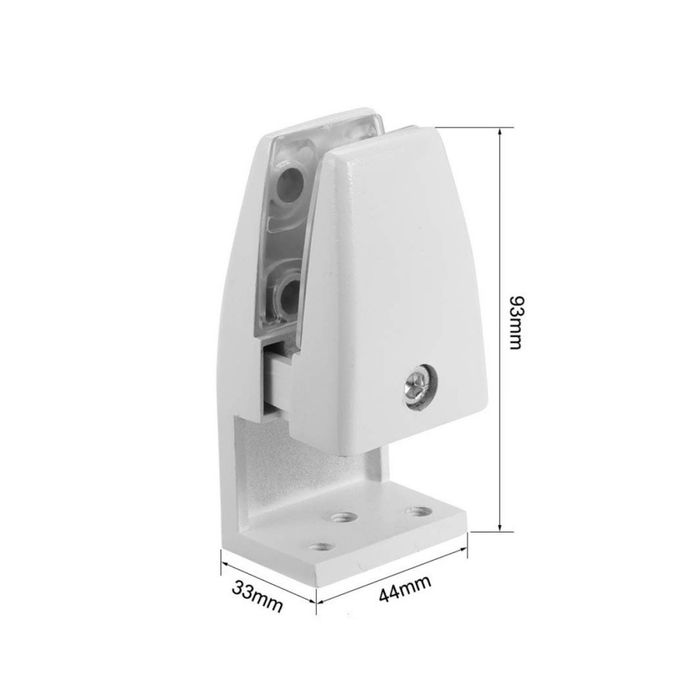

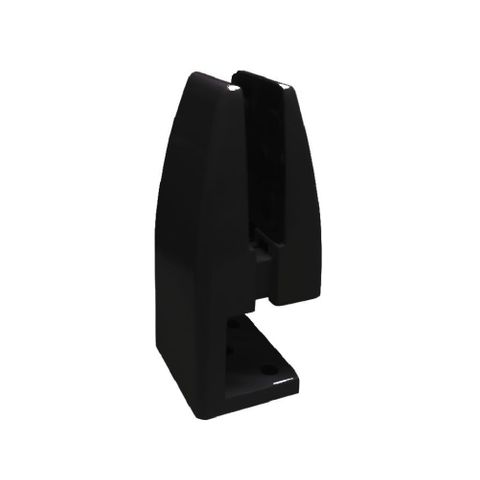

The Divided-Mount brackets are spare brackets for screens that are sold without brackets or as replacement/additional bracket
They are made from light andsturdy aluminium, and are compatible with privacy screens of thickness between 6-24mm, with each thickness requiring a specific bolt length.
Side and Divided mount base section is designed to suit 25mm thick tops, however with packing they can be adapted to 18mm thick tops.
Most screens require at least 2 of these to support them, some may require more
Install in 3 easy steps:
Slide the brackets over the edge of the desktop
Tighten the 3 screws (for each bracket) from underneath
Insert the privacy screen in the brackets and tighten the bolts.
Bracket colour: Black
Please specify screen thickness to determine overall length of Cap Bolt
(Bolt: Hex head 8mm diam x 5mm deep head M6 thread)
3-5mm panels /15mm bolt
6mm or 9mm panels /20mm bolt
8mm and 12mm panels/ 25mm bolt
18mm panels /30mm bolt
24mm panels/ 35mm bolt
The Divided-Mount brackets are spare brackets for screens that are sold without brackets or as replacement/additional bracket
They are made from light andsturdy aluminium, and are compatible with privacy screens of thickness between 6-24mm, with each thickness requiring a specific bolt length.
Side and Divided mount base section is designed to suit 25mm thick tops, however with packing they can be adapted to 18mm thick tops.
Most screens require at least 2 of these to support them, some may require more
Install in 3 easy steps:
Slide the brackets over the edge of the desktop
Tighten the 3 screws (for each bracket) from underneath
Insert the privacy screen in the brackets and tighten the bolts.
Bracket colour: Silver
Please specify screen thickness to determine overall length of Cap Bolt
(Bolt: Hex head 8mm diam x 5mm deep head M6 thread)
3-5mm panels /15mm bolt
6mm or 9mm panels /20mm bolt
8mm and 12mm panels/ 25mm bolt
18mm panels /30mm bolt
24mm panels/ 35mm bolt

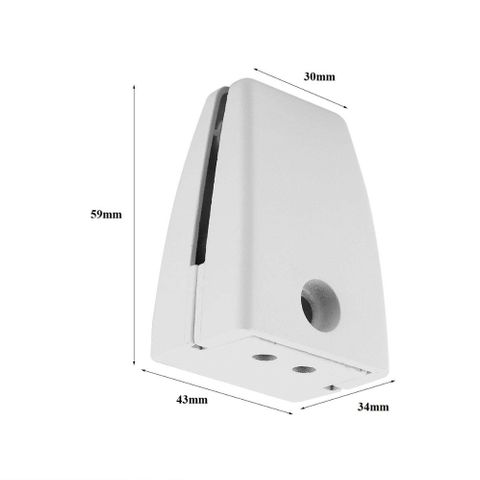

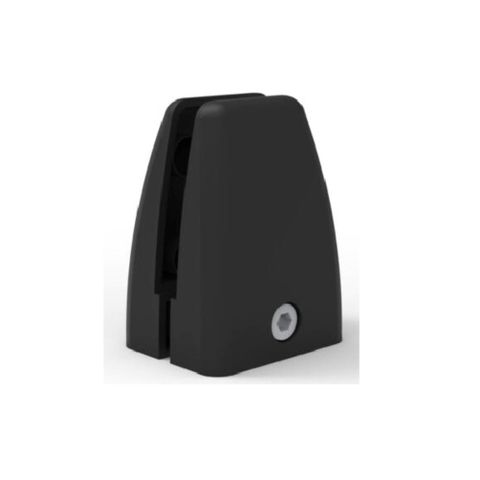

The Side-Mount Hush Bracket is compatible with desk tops of thickness 25mm tops, and with packing can be adapted to 18mm tops.
The surface mount brackets are compatible with privacy screens of thickness between 6 - 24mm.
Made from Aluminium, light and sturdy
** Unfitted
Slide the brackets over the edge of the desktop;
Open the top section of the bracket, insert the privacy screen in the brackets and tighten the bolts.
M6 Hex socket grub bolts are used, the length required differs depending on the panel thickness, please specifiy.
Length 15 mm
Length 20 mm for 6mm or 9mm panels
Length 25 mm for 8mm and 12mm panels
Length 30 mm for 18mm panels
Length 35mm for 24mm panels
Bracket Colour: Black
The Side-Mount Hush Bracket is designed to clamp onto screens such as felt Hush panels.
They are compatible with desk tops of 25mm thick tops, or with plastic inserts 18mm thick.
The surface mount brackets are compatible with privacy screens of thickness between 6 - 24mm.
Made from Aluminium, light and sturdy
Unfitted. To fit:
Slide the brackets over the edge of the desktop;
Open the top section of the bracket, insert the privacy screen in the brackets and tighten the bolts.
Unfitted, to fit:
Slide the brackets over the edge of the desktop;
Open the top section of the bracket, insert the privacy screen in the brackets and tighten the bolts.
Bracket Colour: Silver
Please specify screen thickness to determine overall length of Cap Bolt
(Bolt: Hex head 8mm diam x 5mm deep head M6 thread)
3-5mm panels /15mm bolt
6mm or 9mm panels /20mm bolt
8mm and 12mm panels/ 25mm bolt
18mm panels /30mm bolt
24mm panels/ 35mm bolt

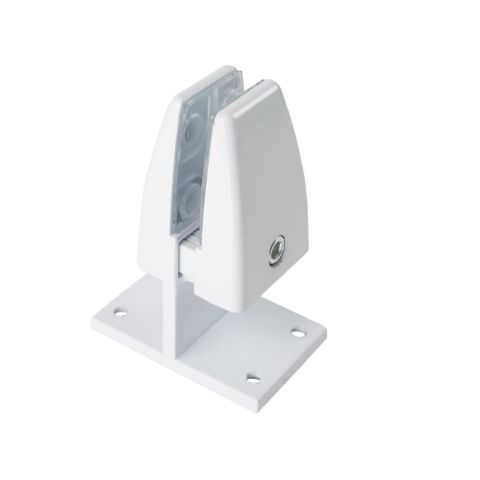

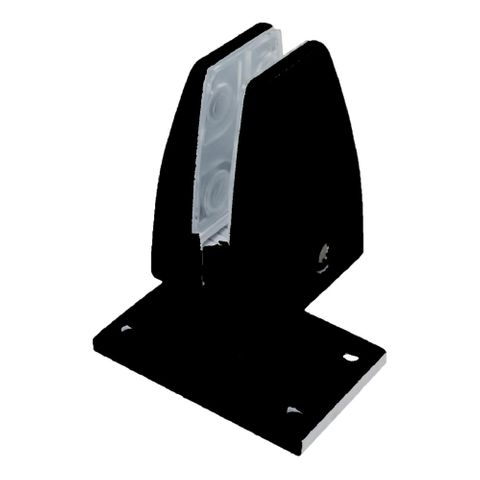

The Top Mount Hush Bracket are compatible with all desk tops irrespective of their thickness.
because the brackets are screwed down into the desk top.
The surface mount brackets are compatible with privacy screens of thickness between 6 - 24mm.
Made from Aluminium, light and sturdy
Canbe used with Hush Acoustic Panels or Plexa Privacy Panels
Install screens in 3 easy steps.

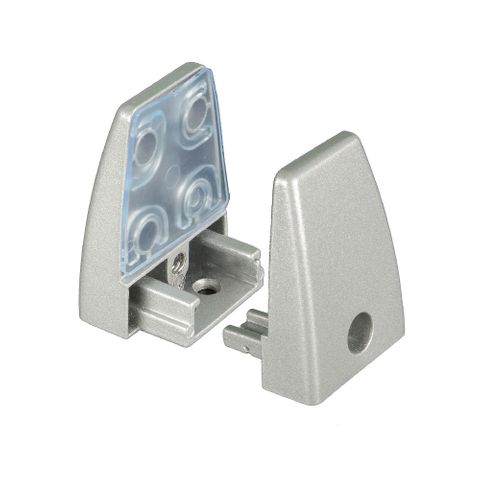

Separate the 2 parts of the bracket;
Screw 1 part of the bracket through base to the desktop;
Slide the bracket together, screw the bolt in part way, insert the privacy screen in the brackets and tighten the bolts.
Bracket colour: Black
Please specify screen thickness to determine overall length of Cap Bolt
(Bolt: Hex head 8mm diam x 5mm deep head M6 thread)
3-5mm panels /15mm bolt
6mm or 9mm panels /20mm bolt
8mm and 12mm panels/ 25mm bolt
18mm panels /30mm bolt
24mm panels/ 35mm bolt
The Top Mount Hush Bracket are compatible with all desk tops irrespective of their thickness.
because the brackets are screwed down into the desk top.
The surface mount brackets are compatible with privacy screens of thickness between 6 - 24mm.
Made from Aluminium, light and sturdy
Canbe used with Hush Acoustic Panels or Plexa Privacy Panels
Install screens in 3 easy steps.
Separate the 2 parts of the bracket;
Screw 1 part of the bracket through base to the desktop;
Slide the bracket together, screw the bolt in part way, insert the privacy screen in the brackets and tighten the bolts.
Bracket colour: Silver
Please specify screen thickness to determine overall length of Cap Bolt
(Bolt: Hex head 8mm diam x 5mm deep head M6 thread)
3-5mm panels /15mm bolt
6mm or 9mm panels /20mm bolt
8mm and 12mm panels/ 25mm bolt
18mm panels /30mm bolt
24mm panels/ 35mm bolt
The Divided-Mount brackets are spare brackets for screens that are sold without brackets or as replacement/additional bracket
They are made from light andsturdy aluminium, and are compatible with privacy screens of thickness between 6-24mm, with each thickness requiring a specific bolt length.
Side and Divided mount base section is designed to suit 25mm thick tops, however with packing they can be adapted to 18mm thick tops.
Most screens require at least 2 of these to support them, some may require more
Install in 3 easy steps:
Slide the brackets over the edge of the desktop
Tighten the 3 screws (for each bracket) from underneath
Insert the privacy screen in the brackets and tighten the bolts.
Bracket colour: White
Please specify screen thickness to determine overall length of Cap Bolt
(Bolt: Hex head 8mm diam x 5mm deep head M6 thread)
3-5mm panels /15mm bolt
6mm or 9mm panels /20mm bolt
8mm and 12mm panels/ 25mm bolt
18mm panels /30mm bolt
24mm panels/ 35mm bolt
The Side-Mount Hush Bracket is compatible with desk tops 25mm thick, or with plastic inserts: 18mm thick.
They will clamp onto privacy screens of thickness between.
The surface mount brackets are compatible with privacy screens of thickness between 6 - 24mm.
Made from Aluminium, light and sturdy
Unfitted, to fit:
Slide the brackets over the edge of the desktop;
Open the top section of the bracket, insert the privacy screen in the brackets and tighten the bolts.
Bracket Colour: White
Please specify screen thickness to determine overall length of Cap Bolt
(Bolt: Hex head 8mm diam x 5mm deep head M6 thread)
3-5mm panels /15mm bolt
6mm or 9mm panels /20mm bolt
8mm and 12mm panels/ 25mm bolt
18mm panels /30mm bolt
24mm panels/ 35mm bolt
The Top Mount Hush Bracket are compatible with all desk tops irrespective of their thickness.
because the brackets are screwed down into the desk top.
The surface mount brackets are compatible with privacy screens of thickness between 6 - 24mm.
Made from Aluminium, light and sturdy
Canbe used with Hush Acoustic Panels or Plexa Privacy Panels
Install screens in 3 easy steps.
Separate the 2 parts of the bracket;
Screw 1 part of the bracket through base to the desktop;
Slide the bracket together, screw the bolt in part way, insert the privacy screen in the brackets and tighten the bolts.
Bracket colour: White
Cap bolt Length 25mm suits 8mm and 12mm panels
